LED white light bulb

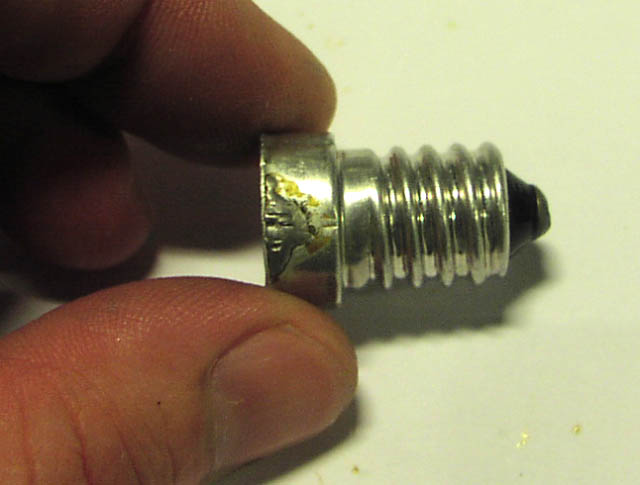

lightbulb was removed outdoor ! and socket cleaned as much as possible

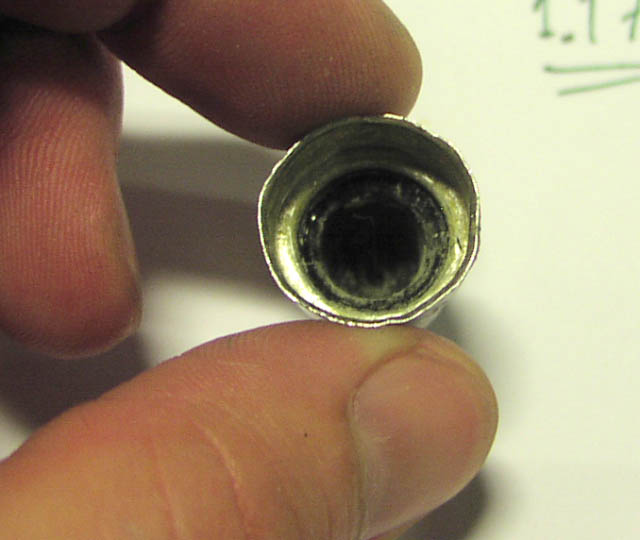

this hole can almost fit some of the components
the 100 ohm and 2 x 220nF 400 V types

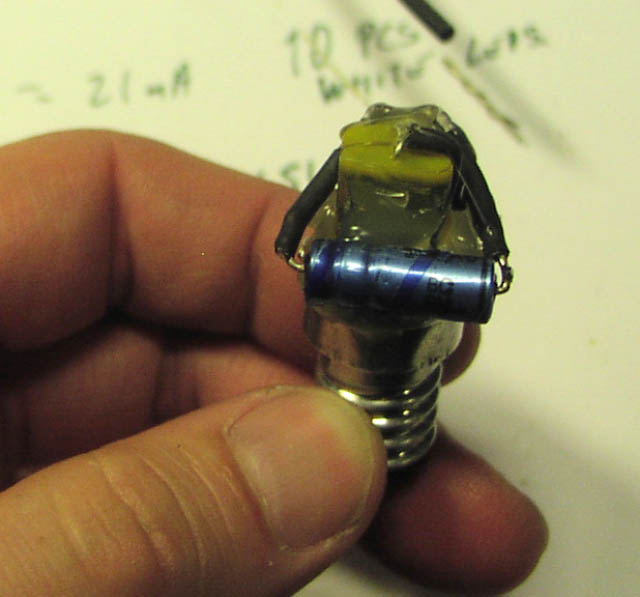

the 10uF is a 100V type, so plenty of margin here

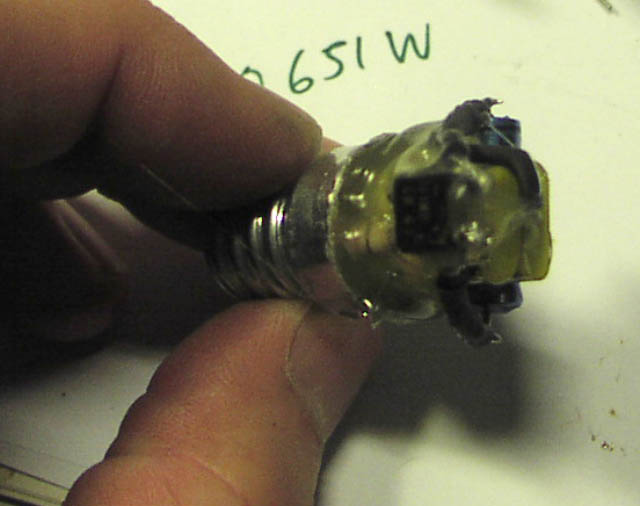

tiny 4 pin rectifier almost visible in the heatmelt glue, yes this thing dont get hot at all !! so heat melt glue can be used.
Try to make it as compact as possible, for better fit in your lamp later

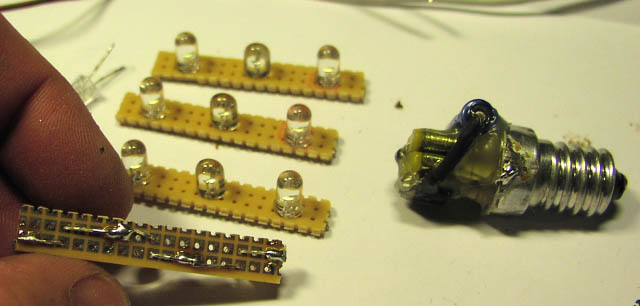

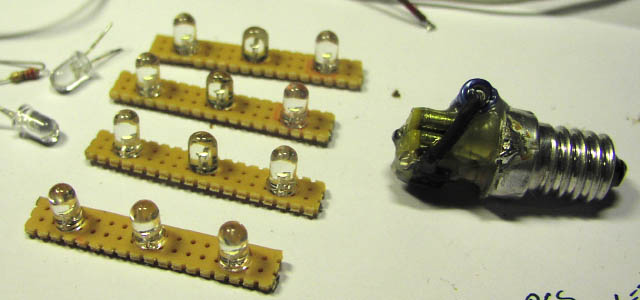

prototype board can be cut out and used as a stable holder for the leds
each little board was carefully serial connected and tested again to be sure it is right

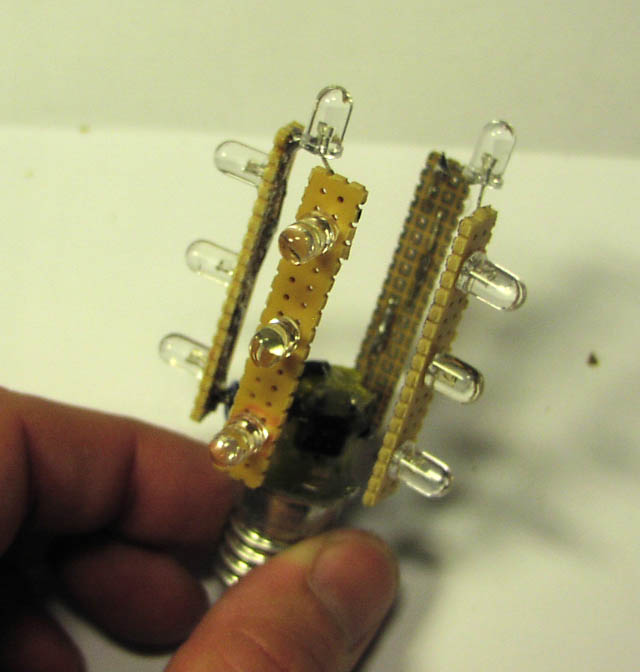

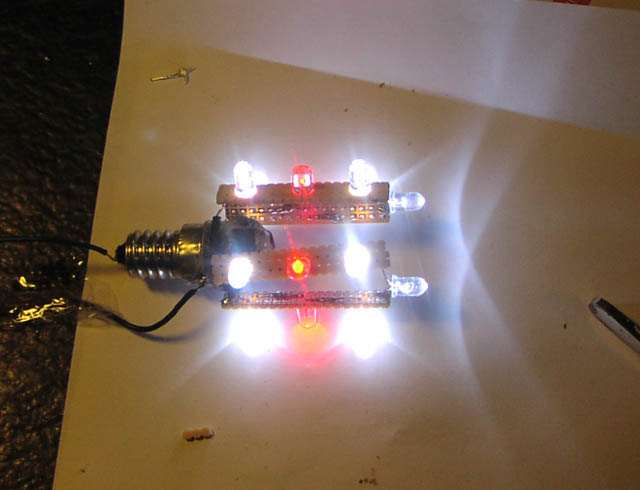

I tried to spread the light in all directions, leds are quite directional specially before I grinded them flat

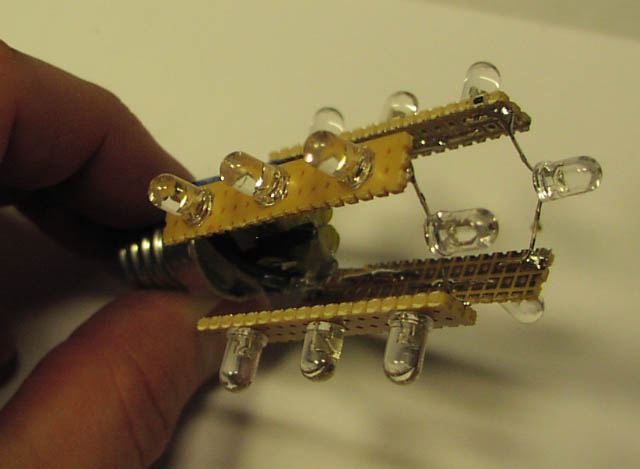

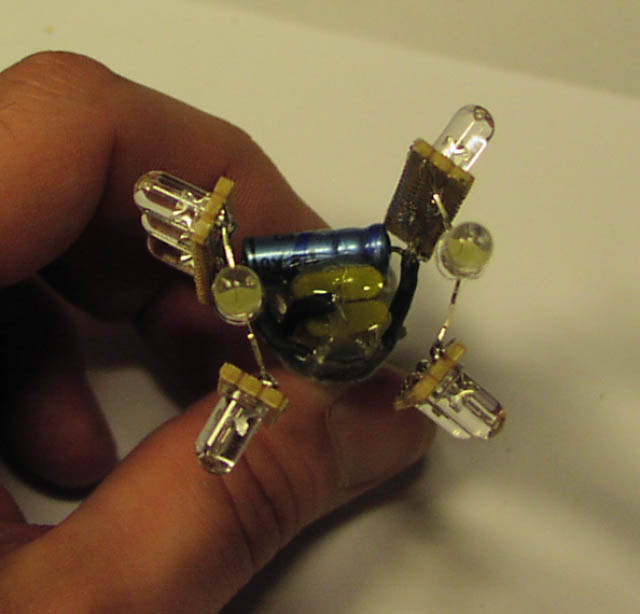

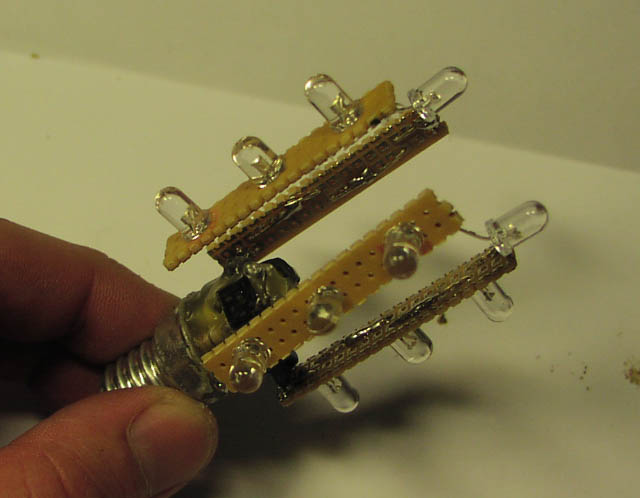

using the capacitor ends as a supply base and the top leds as connections from the 2 and 2 boards, I got all the way arround without adding wires
making it straight and nice was not my main task, this is only a prototype to prove the NO LOSS supply is good
The 220 ohm resistor can go anywhere in the diode chain, so I added it here and heatshrink'ed it with 2 layers

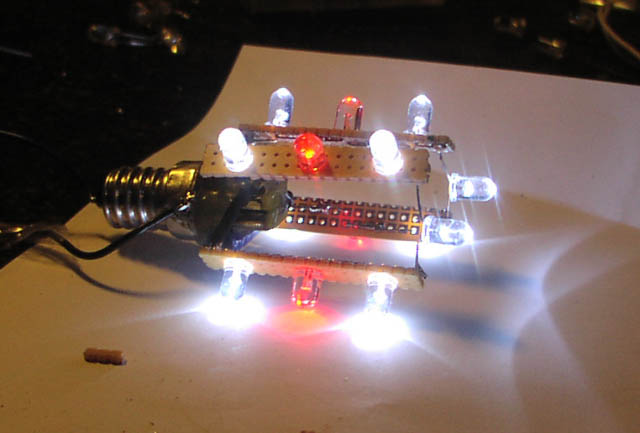

it is clear the red leds are not same hipower technology, just bad luck
the beam width of the leds is terrible narrow, so to solve this, I simply grinded them flat ! this gives a much more nice diffused light
use sand paper or a table grinder, be carefull not to grind too deep into the led, just make it flat top and stop there.
lightbulb was removed outdoor ! and socket cleaned as much as possible
this hole can almost fit some of the components
the 100 ohm and 2 x 220nF 400 V types
the 10uF is a 100V type, so plenty of margin here
tiny 4 pin rectifier almost visible in the heatmelt glue, yes this thing dont get hot at all !! so heat melt glue can be used.
Try to make it as compact as possible, for better fit in your lamp later
prototype board can be cut out and used as a stable holder for the leds
each little board was carefully serial connected and tested again to be sure it is right
I tried to spread the light in all directions, leds are quite directional specially before I grinded them flat
using the capacitor ends as a supply base and the top leds as connections from the 2 and 2 boards, I got all the way arround without adding wires
making it straight and nice was not my main task, this is only a prototype to prove the NO LOSS supply is good
The 220 ohm resistor can go anywhere in the diode chain, so I added it here and heatshrink'ed it with 2 layers
it is clear the red leds are not same hipower technology, just bad luck
the beam width of the leds is terrible narrow, so to solve this, I simply grinded them flat ! this gives a much more nice diffused light
use sand paper or a table grinder, be carefull not to grind too deep into the led, just make it flat top and stop there.
I feel confident to say anyone can make LED light at home and save big time !
